Smart Remote Head Gives You The Freedom To Be More Creative



Material of Construction: High-grade CNC Aluminum
Load Capacity: 7.5 kg / 16.5 lb
Pan and Tilt: Movement: 360°
Speed: Minimum: 6°/sec, Maximum: 51°/sec, Covers 360° at Slowest Speed in : 2 minutes, Covers 360° at Highest Speed in : 7 seconds
Motors: Two high torque, coreless DC motors that rotate the Head 360° (Pan/Tilt)
Gears: 2 Small: ⌀ 13.5mm (Brass), 2 Large: ⌀ 88mm (Aluminum)
Adjustment:Minimum Height of Head: 18.5" / 46.99 cm, Maximum Height of Head: 26" / 66 cm
Joystick Controller: Axis: 2, Connectors: 2x 4-Pin XLR Male Connectors, Pan/Tilt Direction: Yes, Upgraded with: Damping Knob
AC Adapter Input: AC 100-240V ; Output 12V DC-2A
Cables: Cable Length: 15 meter (Can be extended up to 50 meter), Cable Connector: 4-Pin XLR, Battery Cable: 3 meter Long
Weight: Pan/Tilt Head: 3 kg / 6.6 lb, Joystick: 800 gram / 28.22 oz, Bag Dimensions: 50 x 35 x 19 cm

PACKAGING INFO

Package weight: 7.7 kg / 16.97 lb
Box Dimensions (LxWxH): 22.8 x 14.9 x 7.4" / 58 x 38 x 19 cm

IN THE BOX

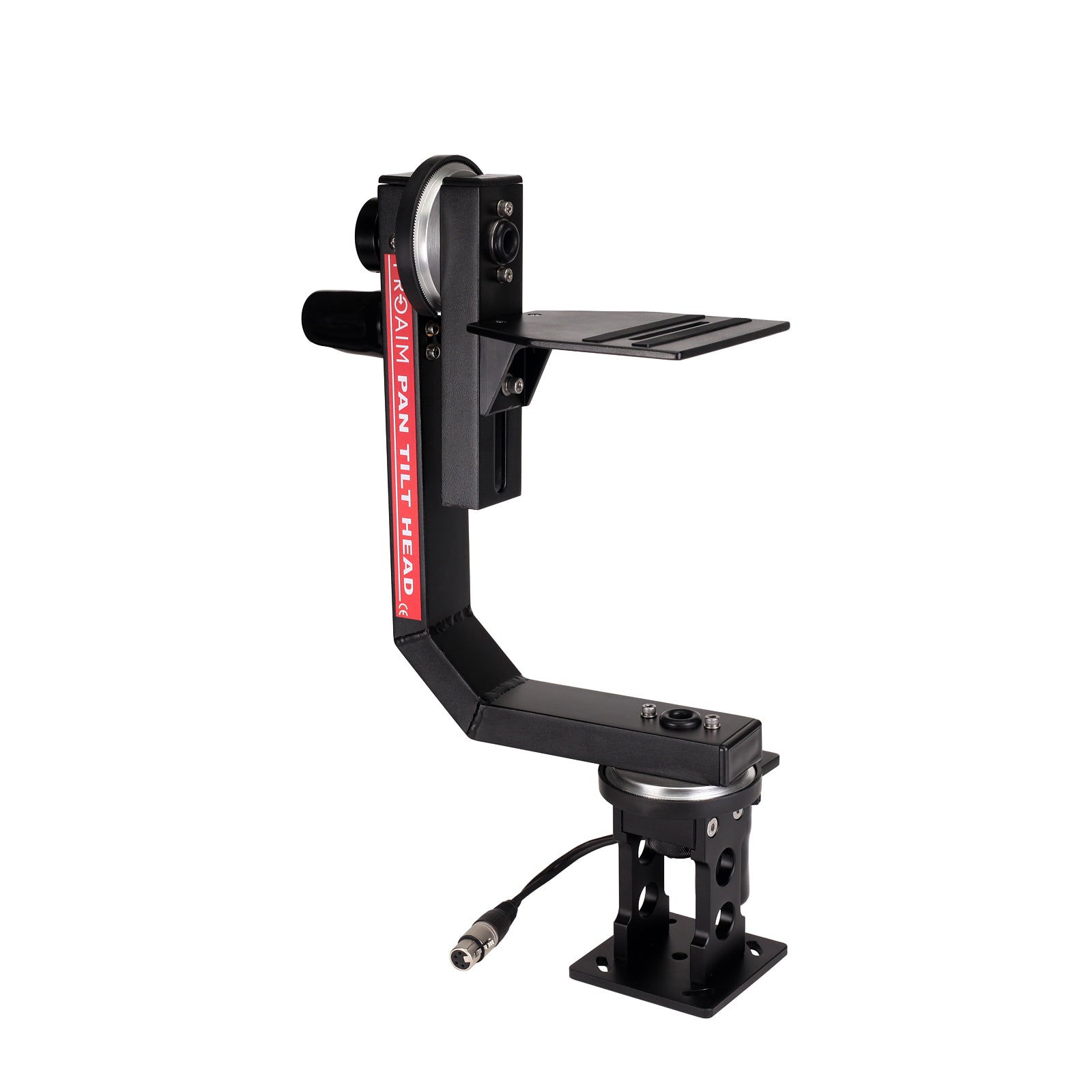

Proaim Sr. Pan & Tilt Camera Motorized Head
Joystick Control
15 meter/49foot long Control Cable
3 meter long 4pin XLR cable (for using 12VDC Battery Packs)
1/4"-Camera Mounting Screw
Worldwide Universal Adapter
12V AC Adapter
Storage Case with Custom Fit Packing
