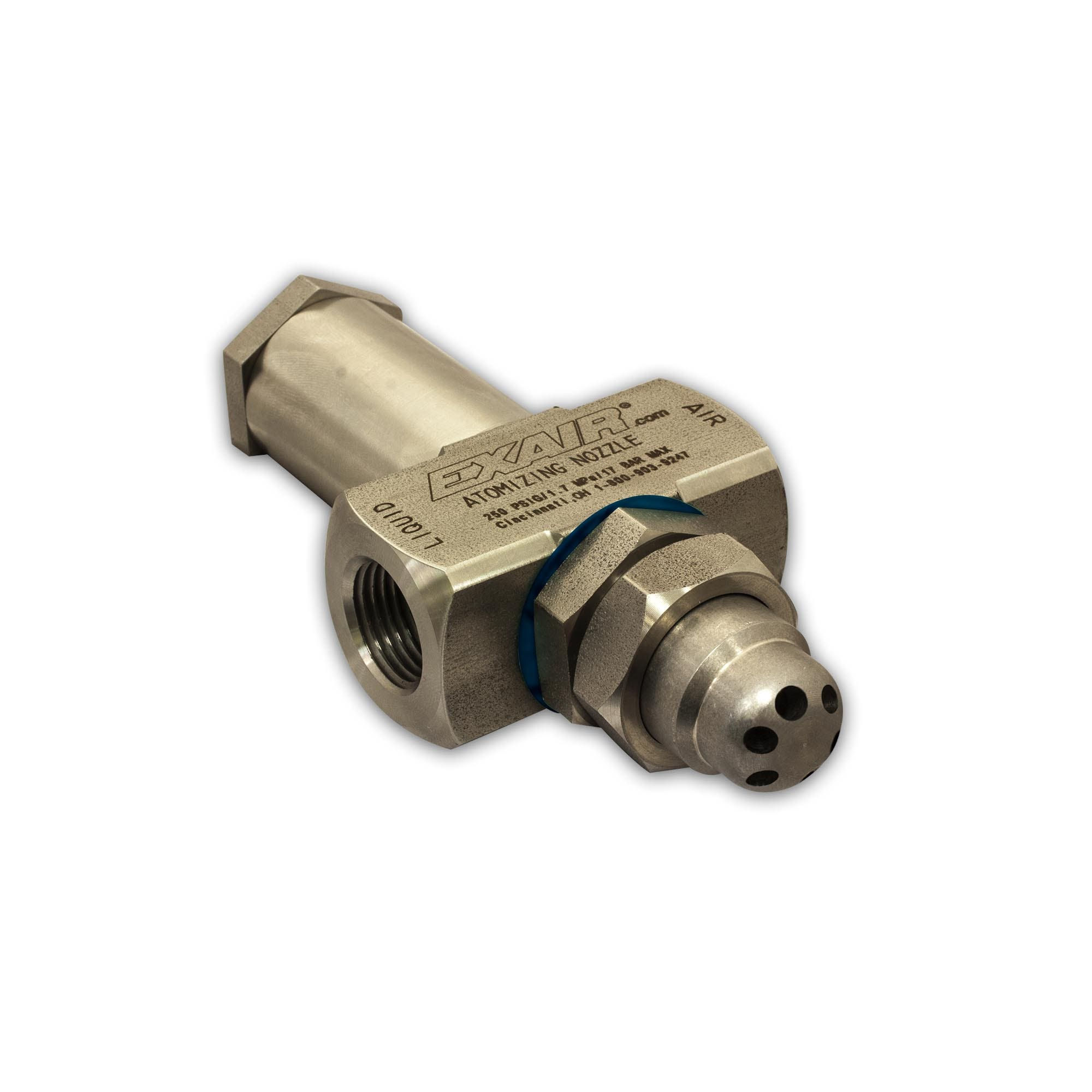

Exair Model AW6030SS 264 GPH 1/2 FNPT No Drip Internal Mix Wide Angle Round Atomizing Nozzle







EXAIR's 1/8 FNPT, 1/4 FNPT and 1/2 FNPT no drip internal mix wide angle round pattern atomizing nozzles positively stop liquid flow when the compressed air is shut off helps conserve expensive liquids and protects the product finish from drips. They are great for covering a broad area and can be adjusted for a light mist or a heavy soaking spray. They are popular for dust mitigation, humidification, and cooling of products, people or livestock in a broad area. These nozzles are also perfect for applying a coating to parts packed in large containers, for example, misting a container of stamped steel parts with oil to prevent oxidation during shipment. For pressure fed applications not requiring independent air and liquid control.


Applications

Washing
Rinsing
Coating
Cooling
Quenching
Wetting (moistening)
Humidification
Dust Control


Advantages

Fully adjustable
Maximizes liquid dispersion
Minimizes liquid consumption
All stainless steel construction
Compact
Versatile
Interchangeable liquid and air caps
Minimizes air consumption
Fine atomization

Atomizing Nozzle Materials
Type 303 Stainless Steel - All of EXAIR's Atomizing Nozzles are constructed with Type 303 stainless steel, which can resist high temperatures and corrosive environments. They are designed for environments with a maximum operating temperature of 800°F (426°C).
Accessories



Mounting Brackets - available for 1/8 FNPT, 1/4 FNPT and 1/2 FNPT models. Provides a secure mount for EXAIR's Atomizing Nozzles. Constructed of Type 301 stainless steel.



Atomizing Nozzle Standards and Certifications
EXAIR Atomizing Nozzles comply with the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). All sound level measurements are taken at 3 feet away.

Look for this symbol to designate conflict mineral free products throughout our website. EXAIR supports Section 1502 of the Dodd-Frank Wall Street Reform and Consumer Protection Act and we are committed to compliance with the conflict minerals rule in order to curb the illicit trade of tin, tantalum, tungsten and gold in the DRC region. EXAIR is using the CMRT 3.02 template to document our supply chain and commitment to conflict free products.
Awards - Internal Mix Atomizing Nozzle


EXAIR's Internal Mix Atomizing Nozzles were a winner of the 2011 New Equipment Digest King Awards. The Internal Mix Atomizing Nozzle family won in the Fluid/Pneumatic Power category.


EXAIR's Internal Mix Atomizing Nozzles were a finalist in the 2011 Plant Engineering Product of the Year Awards. The Internal Mix Atomizing Nozzle family placed in the Fluid Handling category.
Droplet Size
One of the primary reasons atomizing spray nozzles are used is because of their fine droplet size. Benefits of fine droplet size include even coating and liquid conservation. For reference, a large raindrop is around 6,000 microns (0.236") in diameter. Standard liquid nozzles produce droplet sizes ranging from 4,000 microns (0.157") down to 300 microns (0.012") in diameter. EXAIR's Atomizing Nozzles produce minuscule droplet sizes in the range of 100 microns (0.004") to 20 microns (0.0008")!




Droplet Size



Model
Liquid Pressure
Air Pressure
Droplet Size (μm*)


AN1020SS
20PSI
40 PSI
71


40PSI
65 PSI
83


ER1020SS
5 PSI
40 PSI
39


20 PSI
40 PSI
57


SR1020SS
4" Siphon Height
20 PSI
25


4" Siphon Height
40 PSI
22



*Volume Median Diameter Dv(50.0) of liquid droplets.
1μ = 1 micron = 0.00004".
All tests performed with water.



















Spray Angle

The Spray Angle is the trigonometric angle created by the width of the spray pattern and the distance at which it is measured. This angle can vary greatly within a given family of atomizing nozzles depending on flow rates and pressures, but will generally fall into the ranges below:




Spray Angle



Model Family
Minimum Angle
Maximum Angle


Internal Mix Narrow Angle Round Pattern- AN1010SS, AN2010SS, etc.
20°
45°


Internal Mix Wide Angle Round Pattern- AW1010SS, AW2010SS, etc.
50°
90°


Internal Mix Flat Fan Pattern- AF1010SS, AF2010SS, etc.
50°
120°


External Mix Round Pattern - ER1010SS, ER2010SS, etc.
25°
60°


External Mix Narrow Angle Flat Fan Pattern - EF1010SS, EF2010SS, etc.
35°
