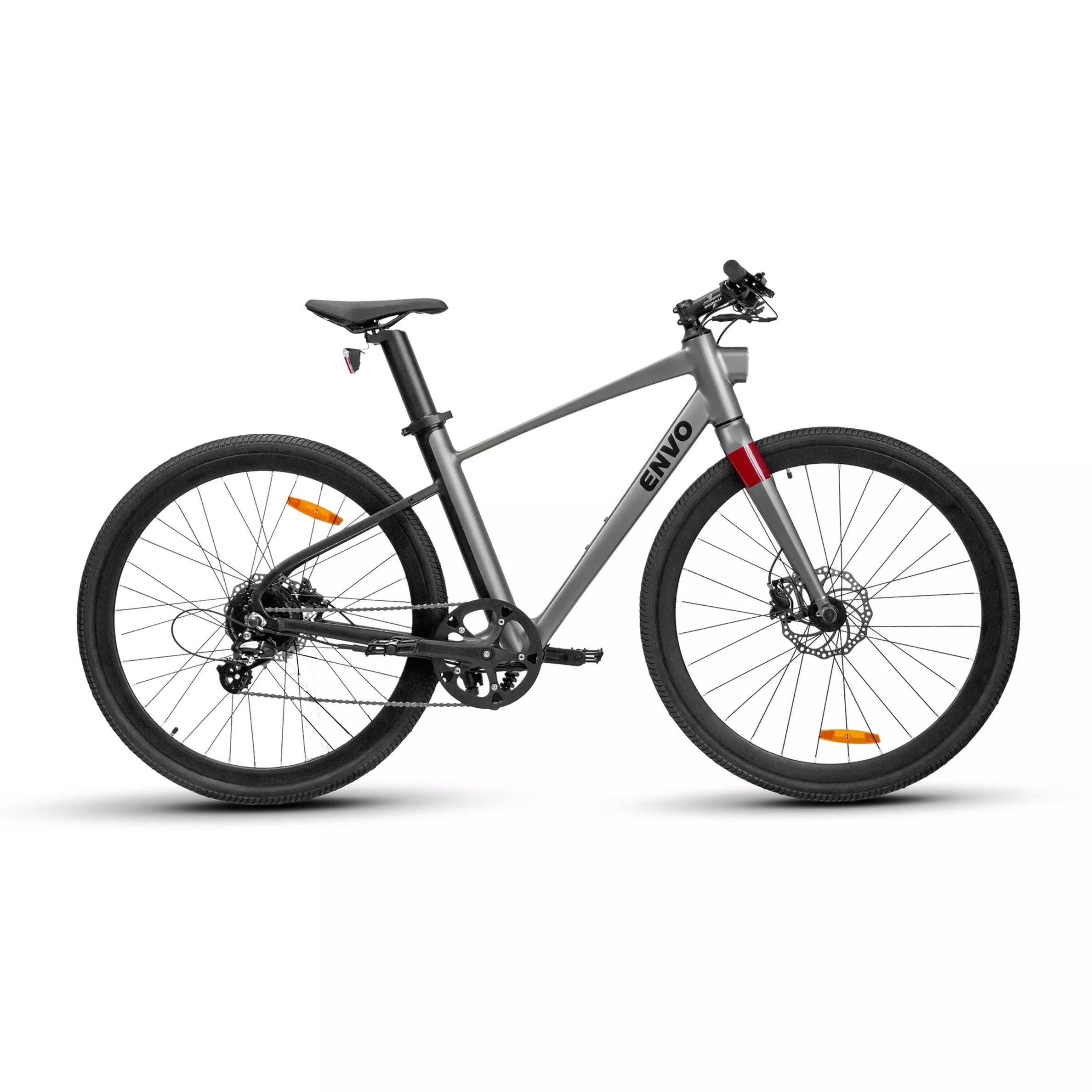

Engineered in Canada, the Stax is a stylish sporty 700C ebike.
Rides, feels and looks like a normal city commuter bike.
Currently the lightest existing ebike, weighing only 42 lb that can easily be carried around for condos, apartments and public transportations.
Battery is UL 2271 Certified, 461Wh Capacity housed inside the seatpost.
FEATURES
Payload Capacity - 250 lb
Total Weight – 19kg (42 lb)
Max Power – 500W
Range – 100km (62 Miles)
Max Speed – 32 km/h (20MPH)
Store Pickup Only: Please contact us to confirm availability. Once ordered, it will take 4 to 7 days for delivery and ready for pickup at The Bicycle Store-Florham Park, NJ
SPECIFICATIONS
Electronics | |
Battery | UL 2271 36V, 12.8Ah Panasonic Lithium |
Controller | 36V, 500W |
Display | LCD Display with speedometer, odometer, pedal-assist indicator |
Hub Motor | Brushless 36V/500W |
HeadLight | Bright Integrated LED 75 LUX |
Pedal Assist | 5 Level Pedal assist |
Charger | 36V/2A 240V/120V |
Mechanical Components | |
Brakes | Shimano Hydraulic Disc Brakes |
Brake Pad Material | Ceramic Pad |
Brake Rotors | 180mm |
Crank set | 48T, 170mm crank |
Derailleur | Shimano Altus 8-Speed |
Fenders | N/A |
Frame | Hydro-formed Alloy 6061 TIG Welded |
Fork | Aluminum Rigid with Internal Cable Routing |
Freewheel | 11-32T |
Handlebar | Flat Hybrid Bars |
Tire | Kenda 700Cx40C |
Saddle | Ergonomic Saddle |
DESIGN
VIDEO
SIZING CHART
Seat Tube Length
The seat tube height should be adjusted as such that while pedaling your leg should not be fully extended at the bottom of the pedal, and your leg should not push against your body on the upswing
Effective Top Tube Length
The effective top tube length impacts your reach, if the top tube length is too long your body will be stretched and that may cause back pain and if the length is too short you may find it difficult to handle the bicycle. Our products feature an adjustable handlebar stem which lets the rider do the ergonomic fine-tuning.
Standover Height
For a comfortable experience, there must always be at least an inch or so space between you and the top tube on your bike when you are standing flat-footed. You can measure your inseam length and check that value against the table provided below.
USER MANUAL
ENVO Stax User Manual (Click to View or Download)
ENVO Stax
Frame
Hydro-formed Alloy 6061 TIG welded
Fork
ZOOM 109D mono-shock fork, tapered from 1-1/8"to 1-1/2",with internal cable routing
Battery
UL 2271 Certified 36V12.8Ah
Motor
Brushless 36V 500W rear motor
Brake Set
Shimano Hydraulic Disk brakes BR-MT200,with 180mm Rotr
Charger
Charger 36V/2A
Transmission
SHIMANO Altus SL-M315 - 8Speed
Tire
Kenda,27.5x1.95，K1153
Pedal
Alloy, 9/16″ WELLGO
Chain
TEC,C70
Sensor
PAS/thumb throttle, speed sensor
Display
LCD Color Display panel, with bluetooth connectivity
Rear Carrier
alloy carrier, black
Fender
PVC Plastic fender
ENVO stax is an electric bicycle that is designed to provide a natural and familiar riding experience akin to a traditional bicycle, it is designed for a crowd looking for a sporty ride. A crowd looking for the lightest bike possible that can easily be carried around in condo staircases, public transits and more; yet looks and behave like a regular bike in order to whip around the city. ENVO Stax puts aesthetic and pleasure first, yet does not sacrifice on motor performance and our beloved torque emulation software. The battery being inside the seatpost, it made it much easier to disguise this eBike has a regular bike. Top Speed 32km/h (20mph)
