Product Overview

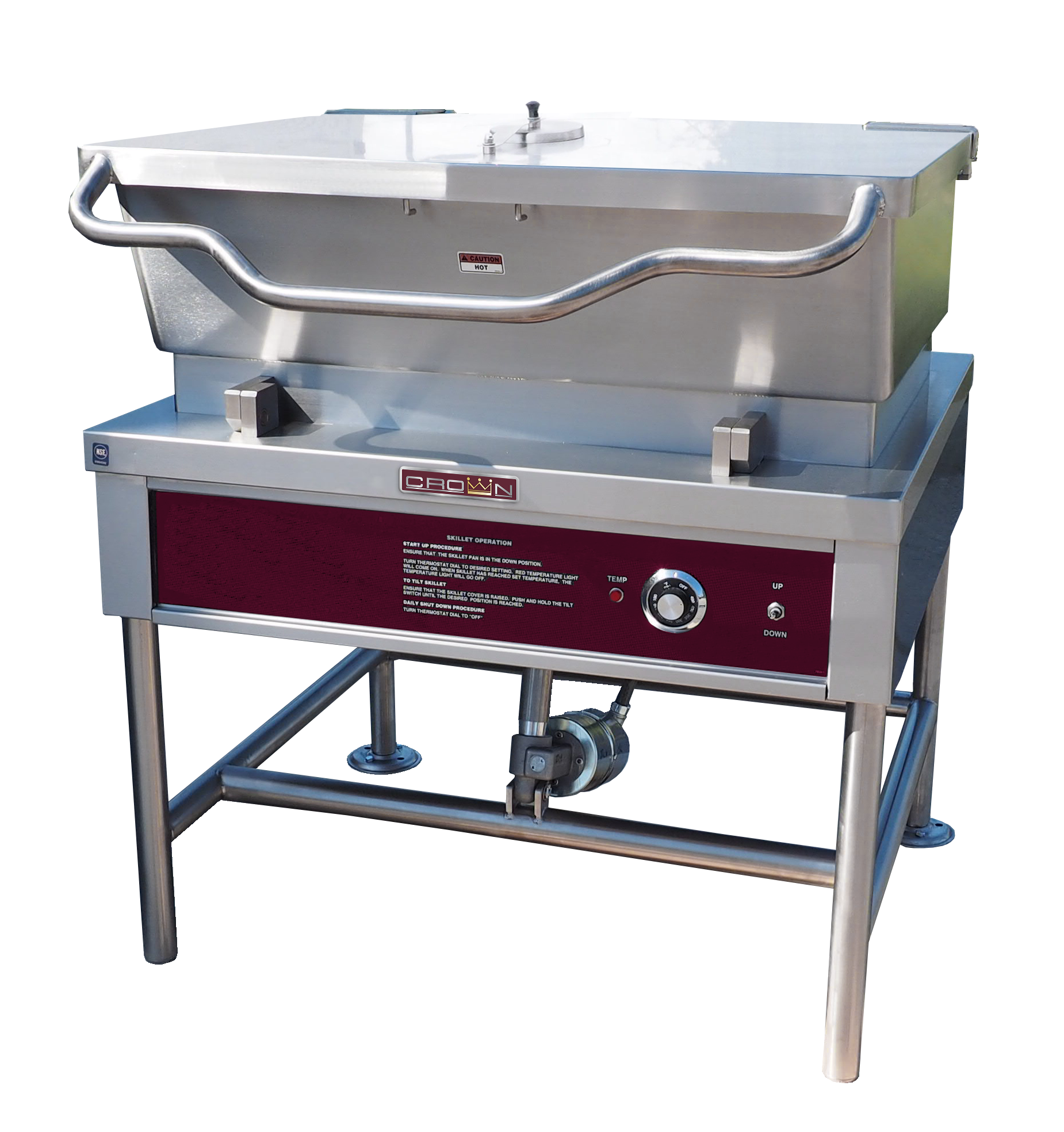

The ELTS-30 and ELTS-40 have a spring assisted, stainless steel cover, with full width handle, no drip condensate guide and vent port with swing cover. The pan has a sloped front and be front hinged for easy tilting pour control and comes complete with a removable pour lip strainer. Pan is formed from 10 gauge 304 stainless steel with a #4 finish exterior and polished interior with coved corners for easy cleaning and etched gallon markings. Cooking surface is heated by electric elements cast embedded in full 1-3/8� (35 mm) thick aluminum casting bolted to the underside of the pan for even heat distribution across the entire surface.
The pan is mounted on a heavy duty welded frame with stainless steel exterior supported by an all welded 1-5/8� (41 mm) stainless steel pipe frame with adjustable bullet feet and rear legs fitted with flange adjustable feet for securing to the floor.
The controls include a thermostat with OFF position and a range of 160�F � 445�F (71�C � 229�C), a thermostat indicator light, pan tilt switch that shuts elements off if tilted more than 5�, and high temperature cut-off set at 536�F (280�C).
Tilting is controlled by an electric motor driven, ball drive actuator for smooth and precise tilting action.
Features
- 304 Stainless Steel liner
- Power tilt
- Pour strainer
- 4� vent port
- Etched gallon markings
- Flanged feet
Options
- 380 VAC, 3 phase, 50/60 Hz
- 415 VAC, 3 phase, 50/60 Hz
- 480 VAC, 3 phase, 50/60 Hz
- Etched liter markings (LMS-30, LMS-40)
- 2? (51 mm) draw-off valve with strainer (TVT-2)
- 3� (76 mm) draw-off valve with strainer (TVT-3)
- Correctional package
- Pan carrier (PC-3)
- Steam pan insert (SPI-30, SPI-40)
- 12� Single pantry faucet with swing spout (SF-12)
- 12� Double pantry faucet with swing spout (DF-12)
- 3� Stainless steel faucet plumbing enclosure (3139-1)
- Single pantry faucet & bracket with 60� pot filler (SF-60)
- Double pantry faucet & bracket with 60� pot filler (DF-60)
- Faucet bracket (FB)
- Front flanged feet (FFF-2)
