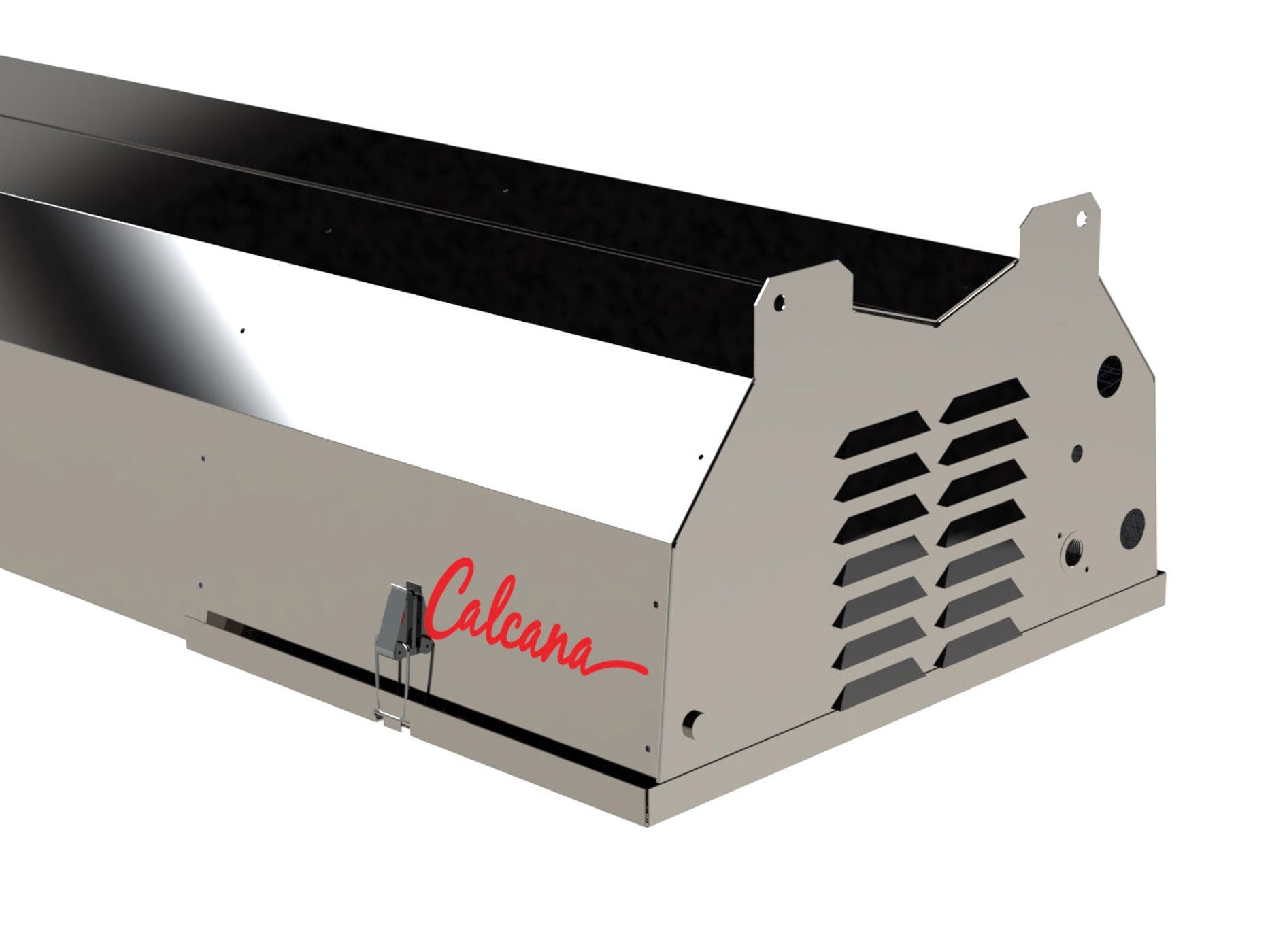

Calcana PH-40 HO 5' High Output Infrared Patio Heater
Heats approximately 12' x 12' mounted 8-12 ft high. 20,000 - 40,000 BTU (modulating) of clean, quiet infrared warmth for restaurant patios, outdoor lounges, and residential entertaining areas.
Key Features
Modulating variable heat control: dial output from 50% to 100% and make your own climate
Safely enclosed flame inside the low-intensity infrared emitter tube; wind-protected
304 stainless steel construction for corrosion resistance outdoors
Direct spark electronic ignition: 3-try DSI with 100% safety shutoff, no pilot lights or thermocouples
Low clearance to combustibles: safe under awnings, trellises, and wood ceilings
Slim overhead design: no floor space lost, ideal for narrow street-side patios
Includes 24V low-voltage On/Off Hi/Lo wall control panel
Certified for outdoor use in wind, rain, and snow
Why Calcana
Calcana low-intensity infrared tube heaters warm people and surfaces directly instead of the air, using up to 40% less fuel than forced-air systems. The flame is fully enclosed inside the emitter tube, so there are no open flames, no glowing red parts, and reliable operation in wind, rain, snow, and temperatures down to -40°F.
Compatible Mounting Kits
Pair with Calcana overhead or wall mounting kits (horizontal, 25 degree tilt, or cantilever) in stainless or marine grade, sized for your heater length.
What's Included
Includes: modulating gas burner, low-noise combustion air blower, visual burner inspection sight glass, air-proving safety switch, 3-try spark ignition control, heat-treated aluminized radiant emitter, aluminum reflector, heat economizer baffle, stainless steel hangers, decorative grill, and indicator light
Made in the USA
How Calcana Compares
Infrared heat isn't blown away by wind like forced-air heaters; heats efficiently even in breezy conditions
Only patio heater on the market with a patented variable/modulating burner: one heater covers everything from gentle warmth to snow melting
Marine grade (316) stainless available for coastal/salt-air installs, beyond the standard 304 stainless most competitors offer
Wall control panel included standard: unlike Bromic and Infratech, where advanced controllers are sold separately, every Calcana heater ships with its own dedicated low-voltage On/Off Hi/Lo wall control panel at no extra cost.
Additional Specs
Width: 15"; Thickness: 9"; Minimum 6" clearance to combustibles
Complete Your Install
Pair with a Calcana overhead or wall mounting kit (horizontal, 25° tilt, or cantilever) sized for this heater's length, in matching stainless or marine grade finish.
